Infrared Touch Screen(IRTS)
Infrared Touch Screen(IRTS)
Features

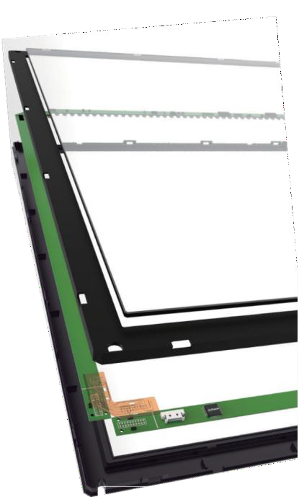

Unibody structure with front IP65
Ambient light immunity up to 150,000lux
90-pair LED recognizing 6mm objects
Auto diagnosis
FCC /CE / RoHS
HID* plug & play with 4 touch points (Windows/Android)
Applications
POS
ATM TVM Kiosk
Self-service machine
Gaming machine
Industrial control
Available Size |
15''(4:3), 17''(5:4), 19''(5:4), 18.5”(16:9), 19”(16:10), 21.5''(16:9), 23.6”(16:9 |
Dimension |
18mm width, 7.5mm thickness (with frame, with glass) |
Number of Touch Points |
1, 2, 4，6，10 |
Minimum Touch Object |
6mm |
Touch Activation Force |
No minimum touch pressure required |
Touch Durability |
Unlimited |
Resolution |
32767*32767 |
Driver Free |
HID* compatible |
Touch Accuracy |
<1mm |
Typical Response Time |
3-10ms |
Frames per Second |
150 fps |
Glass |
3mm Tempered Glass |
Light Transmission |
≥90% with glass |
Operating Systems |
Windows®7, Windows®8, Windows®10, Windows® XP, Mac, Linux & Androi |
Protocol |
HID |
Warranty* |
2 years limited warranty on parts and labor |
Protection Grade |
IP65 (Front) |
Power Supply |
1.5 meters single USB connection |
Low Power Consumption |
Operating ≤1W, Standby ≤ 250mW |
|
|
Per EN61000-4-2:1995; Level 3 |
ESD |
Contact Discharge 6kV |
|
|
Air Discharge 8kV |
|
|
4kV on USB connector pins |
|
