Resistive Touch Screen(RTS)

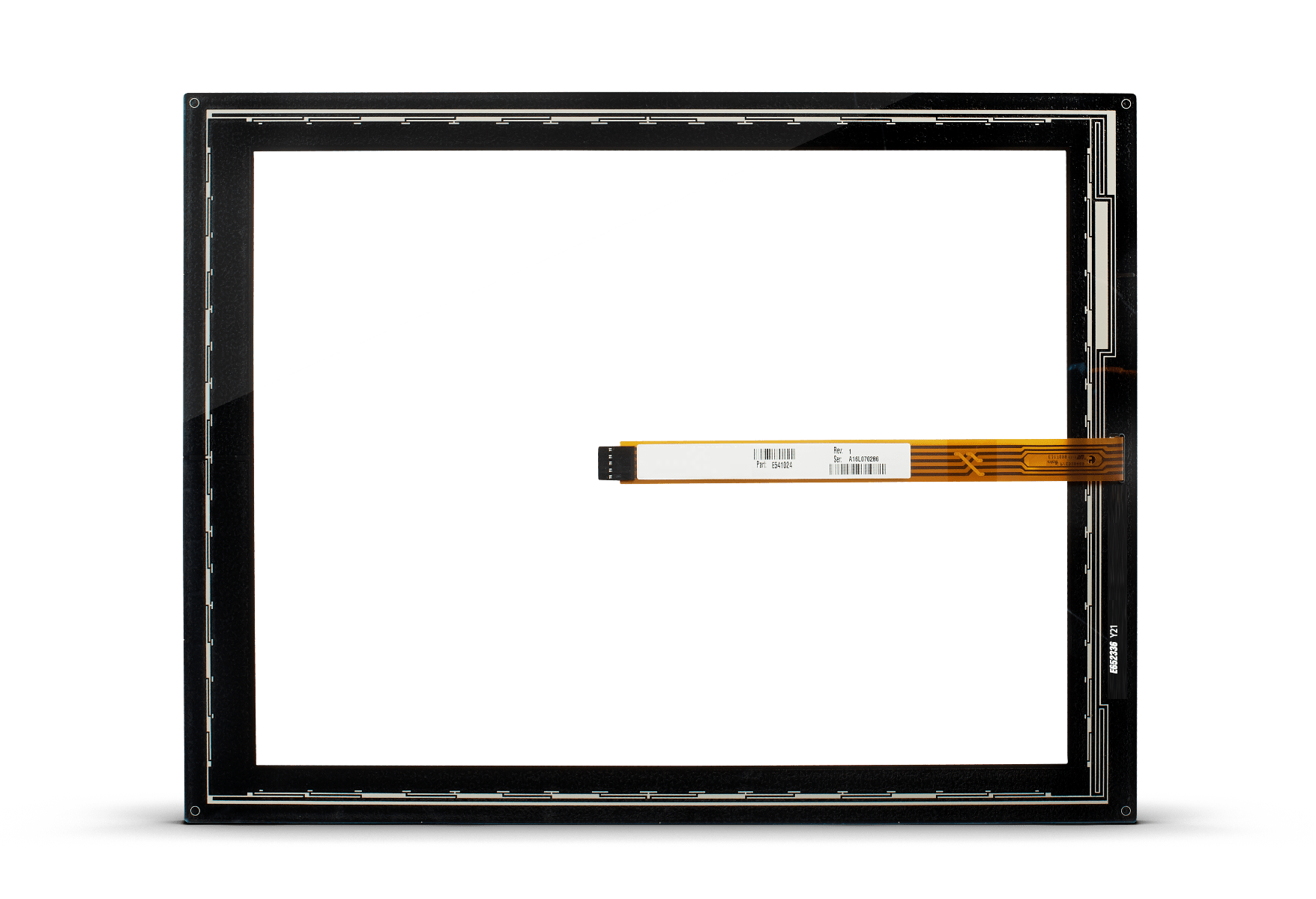

The Panamich Solutions resistive touchscreens are based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. The Panamich five-wire resistive touchscreens use a glass panel with a uniform resistive coating. A thick polyester coversheet is tightly suspended over the top of the glass, separated by small, transparent insulating dots. The screens work with standard EETI controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs.

Smooth Integrations

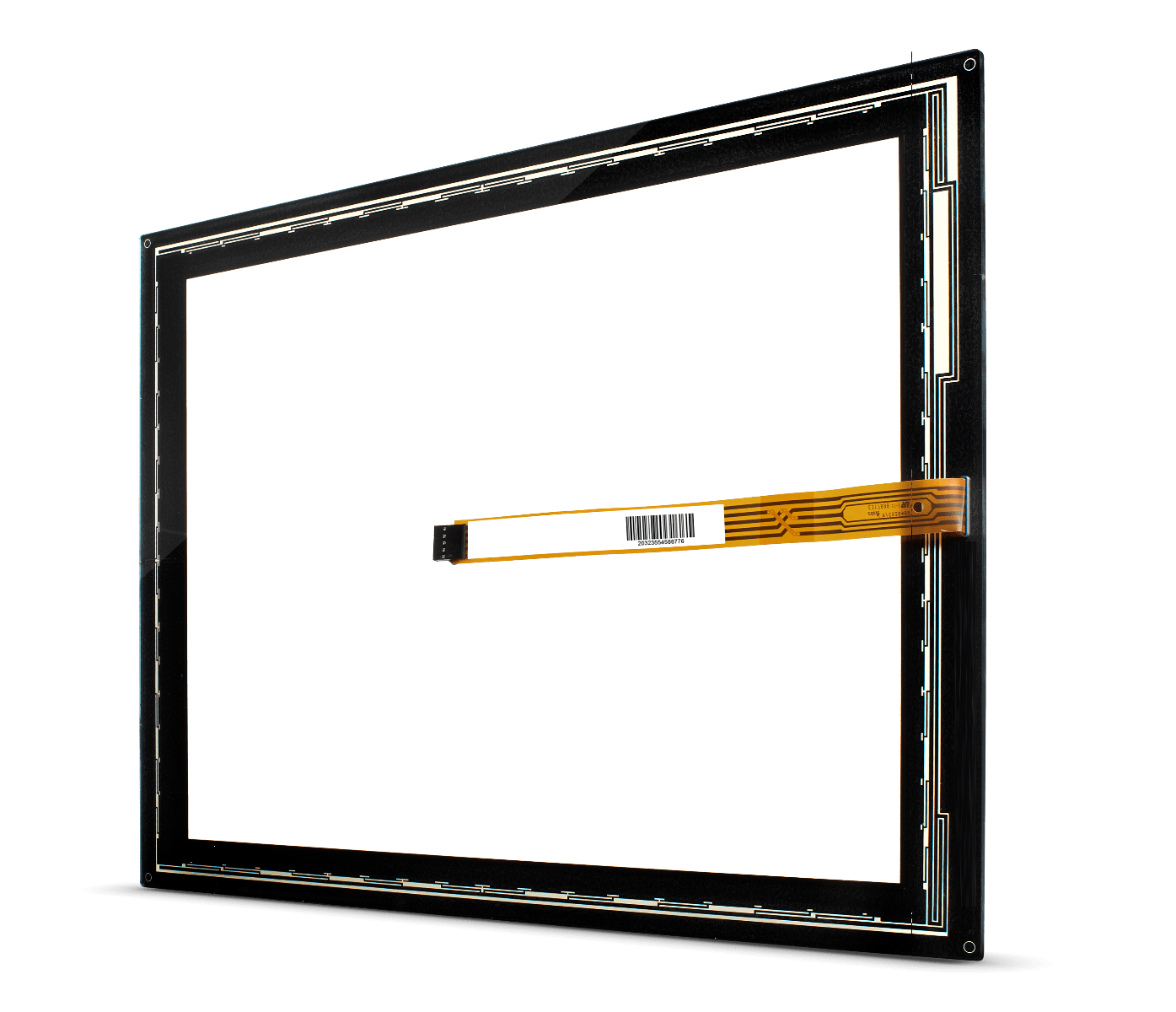

Panamich Zero-Bezel touchscreens are available with proprietary touch technology to deliver a touch response that is drift-free  and accurate in high-use applications. The zero-bezel design eliminates the need for a traditional front-bezel, achieving a smooth, seamless flat surface for a clean, modern look. MicroTouch zero-bezel resistive touchscreens use a flexible printed circuit cable that virtually eliminates the cable attachment bump that is typical on most resistive touchscreens and enables a smooth, flat integration.

The Panamich touchscreens are based on proven five-wire resistive technology, the preferred solution for applications that demand reliability, input flexibility, and contamination resistance. Panamich  touchscreens are available in bezel and zero-bezel designs, with proprietary Panamich technology to deliver a touch response that is drift-free and accurate in high-use applications. Panamich is  Panamich  delivers both X and Y measurements made on a stable rear glass layer where many other resistive touchscreen designs use a flexing plastic coversheet to measure only one axis. As a result, Panamich  resistive touchscreens provide a longer product life, designed to withstand more than 35 million touches. Panamich  touchscreens can be sealed against contamination to support NEMA 4/4x/12 and IP65 standards.

The zero-bezel design eliminates the need for a traditional front-bezel, achieving a smooth, seamless flat surface for a clean, modern look. Panamich  zero-bezel touchscreens use a flexible printed circuit cable that virtually eliminates the cable attachment bump that is typical on most resistive touchscreens and enables a smooth, flat integration. The screens work with standard EETI controller/chip solutions and drivers under a wide variety of operating systems, and are available in a set of standard products as well as customized designs

Size：From 5.6” to 24”

Surface Hardness: 3H or higher

Surface：AG/AR Coating，Sun-Readable

Operating Temperature: -30℃ to 70℃

Storage Temperature: -40℃ to 80℃

Transmittance：＞80%

Linearity：＜1.5%

Operating Life：＞3500 Million Times

Warranty：3 Years

General Specification

Type Five-Wire Resistive Touch Window

Input Mode Stylus or Finger

Cable Flexible Printed Circuit

Environmental Characteristics

Operation Temperature -30℃ to 70℃

Storage Temperature -40℃ to 80℃

Operation Humidity  (Non Condensing)  20%RH - 90%RH

Storage Humidity (Non Condensing)  10%RH - 90%RH

Electrical Characteristics

Loop Resistance X:20~500Ω, Y:20~500Ω

Linearity X≤1.5%, Y≤1.5% (See Figure 10-2)

Chattering ≤10ms

Insulation ≥20MΩ/25V(DC)

Endurance No damage at DC50V/60sec.

Optical Characteristics

Transparency ≥78% (measured by BYK-Gardner Haze Meter at 550nm)

Anti-glare Finish: 8%±2%

Reliability

High Temperature /Humidity 60°C/90%RH, 120 hrs, allow panel stays in normal environment for 24 hrs

High Temperature 80°C /120 hrs allow panel stays in normal environment for 24 hrs

Low Temperature -40°C /120 hrs allow panel stays in normal environment for 24 hrs

Thermal Cycle -30°C ~70℃  [30 min./cycle] *20cycles allow panel to stay in normal environment for 24 hrs

Durability

Knock Test 35,000,000 Times

Line Test 100,000 Times
